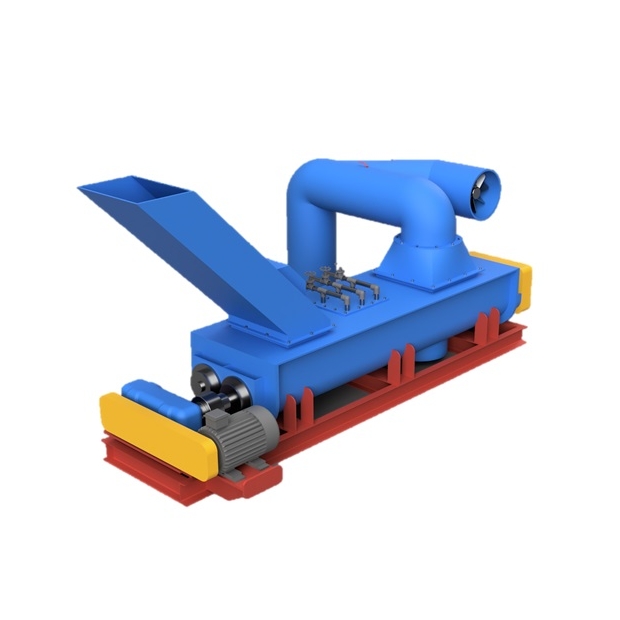

SJ Series Double Shaft Stirring Cooler is the use of two symmetrical spiral axis synchronous rotation, while conveying the material at the same time according to the different temperature of the material by adding a different amount of water mixing, so that the material to achieve the purpose of humidification and cooling.
Two sets of spiral blades are used for mixing, with high mixing efficiency and small floor space. Driven by the reducer, the spiral shaft drives stirring at a reasonable speed. The spiral blades are made of high-strength wear-resistant alloy surfacing and have a long service life. The double-shaft mixer is driven by a hard-tooth surface reducer, which ensures smooth rotation and reliable operation. The twin-shaft mixer is fed from the top and discharged from the bottom, with a reasonable structure. The joint surfaces are tightly sealed and operate smoothly. The double-shaft mixing humidifier is equipped with a nozzle, which is connected to the water-adding humidification system to ensure uniform water spraying, and can meet different needs by controlling the amount of water sprayed.

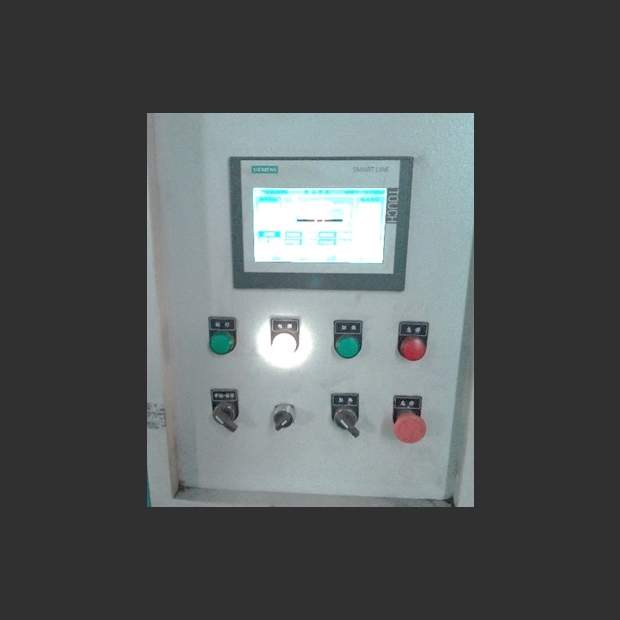

The SJAW system is a special water-adding cooling system designed specifically for dual-axis humidification mixers. It makes comprehensive judgments about adding water based on the environmental parameters of the factory, actual sand temperature conditions, humidity, etc. The metered water-adding part can add water with high accuracy. Combined with dual-axis stirring, it becomes the core control parameter center in the recycling system.

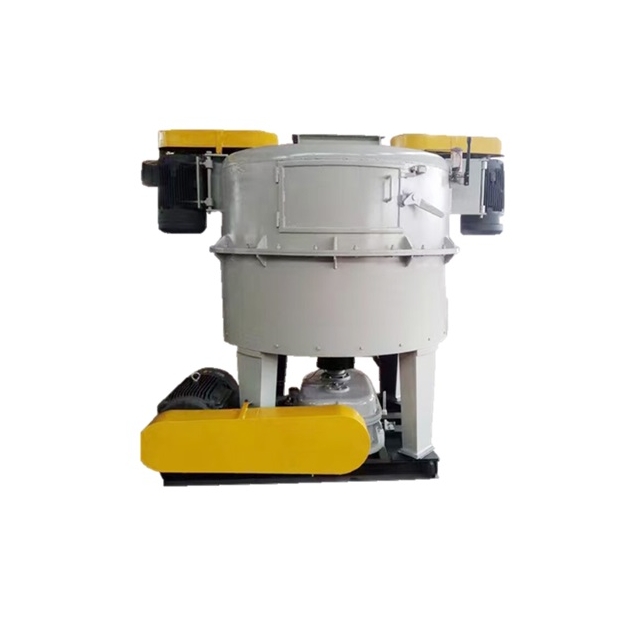

It is mainly used foundry sand mixing machines can be used in a single sand shape, but also mixing dry scrub, since the hard sand, sand veil and back, can also be used for glass, ceramics, refractories, etc. Mixing of powder industry granular materials.
